What is the difference between a Sanitary Tee and Sanitary Wye?

Differences Between Wye and Sanitary Tees Fittings

While both wye fittings and sanitary tees are used in plumbing systems, there are important distinctions between the two.  Wye fittings have a Y-shaped configuration and two outlets at a 45-degree angle, making them suitable for redirecting flow in drainage systems.  On the other hand, sanitary tees feature a T-shaped design with a single outlet perpendicular to the main inlet, which is better suited for vertical connections and venting.

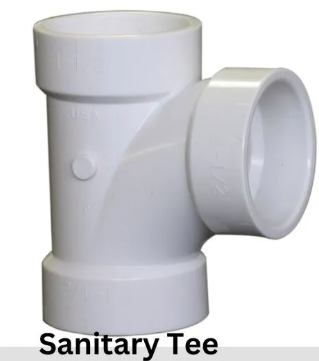

Sanitary Tee's

Primary Applications of the Sanitary Tee
A sanitary tee is a specialized T-shaped plumbing fitting that has several critical applications:

Drainage Connections
  1. Establishing connections between horizontal drainage systems and vertical drain lines.
  2. Installing fixture drains, including sinks and toilets, to the main stacks.
  3. Configuring under-sink drainage systems equipped with P-traps.
Ventilation Systems
  1. Serve as vent tees in plumbing systems to facilitate efficient operations.
  2. Aid in maintaining adequate airflow within drainage systems to prevent blockages.
  3. Ensure the laminar flow of liquids while simultaneously allowing smooth air passage.
Sanitary tees serve specific purposes in plumbing installations, including
  1. Joining waste arms to vent stacks efficiently.
  2. Connecting branch lines to vertical risers seamlessly.
  3. Facilitating proper transitions in drain-waste-vent (DWV) systems for optimal flow and ventilation.

Sanitary Tee Installation Guidelines

  1. Always ensure the sanitary tee is installed in a vertical orientation.
  2. The curved section must consistently face downward to maintain proper flow.
  3. Never use a sanitary tee to connect vertical drainpipes to horizontal lines.
  4. Avoid installing the sanitary tee with the backside facing upward and the side left open.

This fitting is essential for ensuring a proper plumbing installation, especially in scenarios that require horizontal-to-vertical transitions while preserving adequate drainage flow.

Sanitary Wye

A sanitary wye is a special fitting shaped like a lowercase Y.  It has three openings that are positioned at a 45-degree angle.  With this slight bend, wyes are used in opposite cases to tees.  They are used to connect vertical lines to horizontal lines.  Wyes are also used to combine two lines into one in the horizontal direction.  This ensures a seamless flow of liquid through the vertical pipelines, preventing clogging.

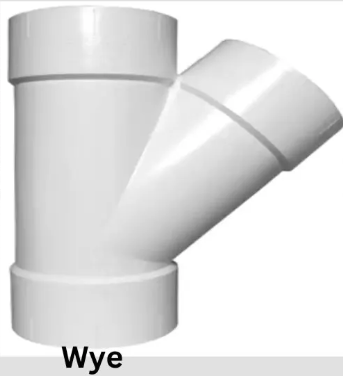

Wye

Sanitary wye (often written as "wye") is a Y-shaped plumbing fitting that serves a specific function in drainage systems. Here's what makes it unique:
Structural and Design:
  1. Shaped like a lowercase "y," this component features three openings positioned at 45-degree angles. Additionally, it provides a gentler slope for waste flow compared to traditional tees.
Primary Applications of the Sanitary Wye:
A sanitary wye is a critical Y-shaped plumbing fitting used in drainage systems for three primary purposes:
Vertical-to-Horizontal Connections
  1. Enables proper connection of vertical lines to horizontal drain lines
  2. Works as the opposite configuration of sanitary tees
  3. Creates optimal flow patterns when transitioning between vertical and horizontal runs
Horizontal Line Combinations
  1. Efficiently combines two horizontal drain lines into one
  2. Maintains proper flow dynamics when merging drainage paths
  3. Reduces turbulence at the connection point
Flow Transition Management
  1. Provides smoother waste flow transitions due to its 45-degree angle design
  2. Minimizes the risk of clogs and blockages
  3. Ideal for situations requiring gentle directional changes in the drainage system
The wye's 45-degree angle design is crucial because it creates less turbulence in the waste flow compared to the sharper 90-degree angle of a sanitary tee.  This makes it particularly effective in preventing clogs and ensuring smooth drainage.

Djs Affordable Contractor provides expert plumbing services for both residential and commercial properties.  We adhere to industry standards and local building codes to deliver reliable and practical solutions.  Reach out for installations, repairs, or maintenance of your home's plumbing systems.
